Error estimation

ipynb nbviewer

This package is based on the Gridap.jl to provide tools to calculate a posteriori error estimates for numerical solutions of partial differential equations (PDEs). For simplicity, we consider here the Poisson equation

\[\begin{align} - \Delta u &= f &&\text{in }\Omega\\ u &= g &&\text{on }\partial\Omega. \end{align}\]

We suppose we have already computed a conforming approximation $u_h \in V_h\subset H^1_0(\Omega)$ to the solution $u$ in Gridap.jl by solving

\[(\nabla u_h, \nabla v_h) = (f, v_h)\quad\forall v_h\in V_h,\]

for this see for example the first Gridap.jl tutorial. The EquilibratedFlux.jl library then provides the tools to compute an estimator $\eta(u_h)$ such that the error measured in the $H^1_0$-seminorm can be bounded as

\[\|\nabla(u - u_h)\| \le \eta(u_h),\]

which we refer to as reliability of the estimator. We also can prove the bound

\[\eta(u_h) \lesssim \|\nabla(u - u_h)\|\]

which we refer to as efficiency. The main ingredient in computing this estimator is a reconstructed flux obtained by postprocessing that is an approximation to the numerical flux, i.e., $\sigma_h\approx -\nabla u_h$. This flux has the important property of being "conservative over faces" in the sense that

\[\sigma_h \in \mathbf{H}(\mathrm{div},\Omega).\]

We provide two functions to obtain this object: build_equilibrated_flux and build_average_flux which we denote by $\sigma_{\mathrm{eq},h}$ and $\sigma_{\mathrm{ave},h}$ respectively.

In addition, for the equilibrated flux $\sigma_{\mathrm{eq},h}$ satisfies the so-called equilibrium condition, i.e., for piecewise polynomial $f$, we have

\[\nabla\cdot\sigma_{\mathrm{eq},h} = f.\]

In either case,the estimator takes the form

\[\eta(u_h) = \| \sigma_{\cdot,h} + \nabla u_h\|.\]

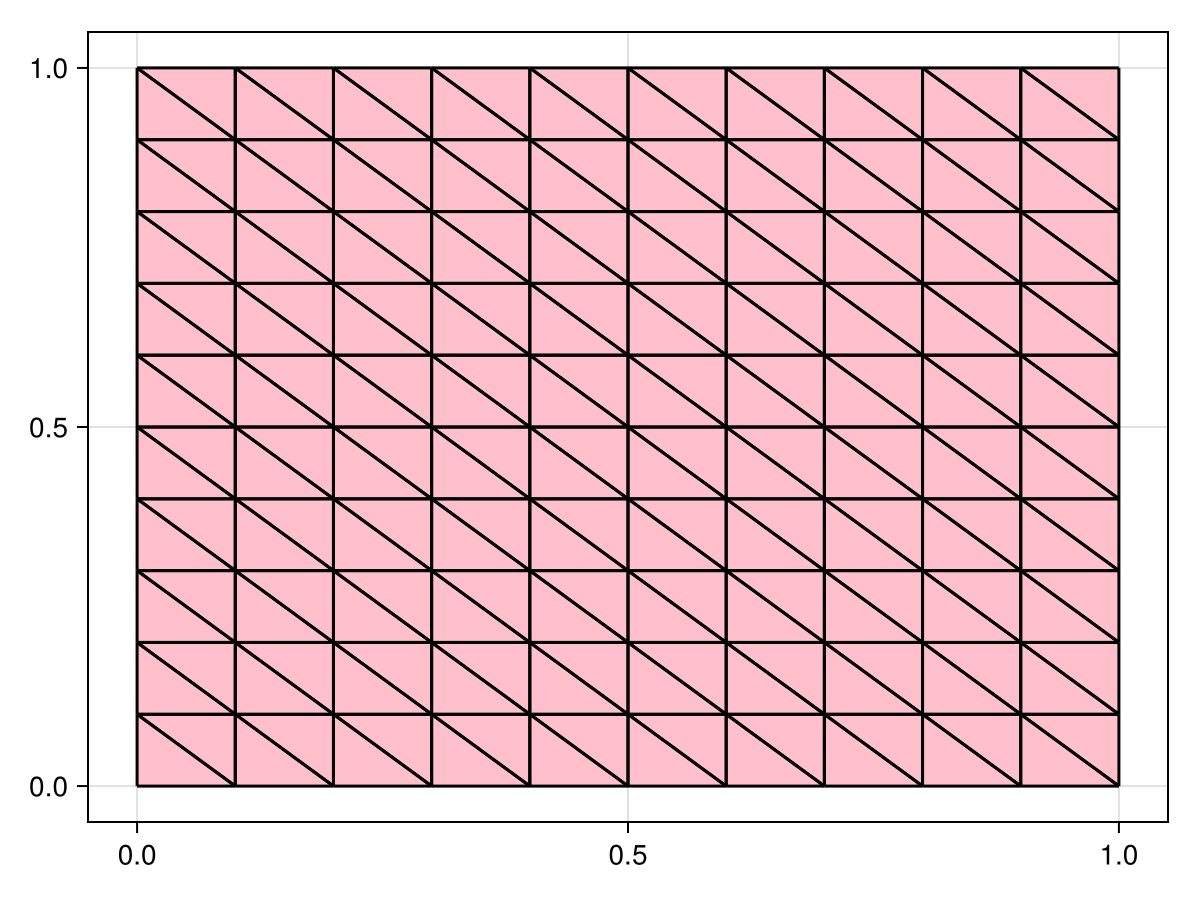

We set $\Omega = (0,1)^2$ to be the unit square in 2D. We use a uniform simplicial mesh $\mathcal{T}_h$ to discretize this domain by the following in Gridap.jl

using Gridap
using GridapMakie
using CairoMakie

n = 10 # Number of elements in x and y for square mesh
domain = (0,1,0,1)
partition = (n, n)
model = CartesianDiscreteModel(domain, partition)
# Change to triangles
model = simplexify(model)
𝓣ₕ = Triangulation(model)
plt = plot(𝓣ₕ)
wireframe!(𝓣ₕ, color=:black)
plt
Example block output

We manufacture the solution $u = \sin(2\pi x)\sin(\pi y)$ by choosing the right hand side:

u(x) = sin(2*pi*x[1]) * sin(pi*x[2])
f(x) = 5 * pi^2 * u(x) # = -Δu
f (generic function with 1 method)

We consider the discrete space

\[V_h = \{v_h\in H_0^1(\Omega): v_h|_K \in\mathbb{P}_k(K),\quad\forall K\in \mathcal{T}_h\}.\]

This is achieved through the following with Gridap.jl:

# Polynomial order
order = 1
degree = 2 * order + 2
dx = Measure(𝓣ₕ, degree)
reffe = ReferenceFE(lagrangian, Float64, order)
V0 = TestFESpace(model, reffe; conformity = :H1, dirichlet_tags = "boundary")
U = TrialFESpace(V0, u)
a(u, v) = ∫(∇(v) ⊙ ∇(u)) * dx
b(v) = ∫(v * f) * dx
op = AffineFEOperator(a, b, U, V0)
uh = solve(op)

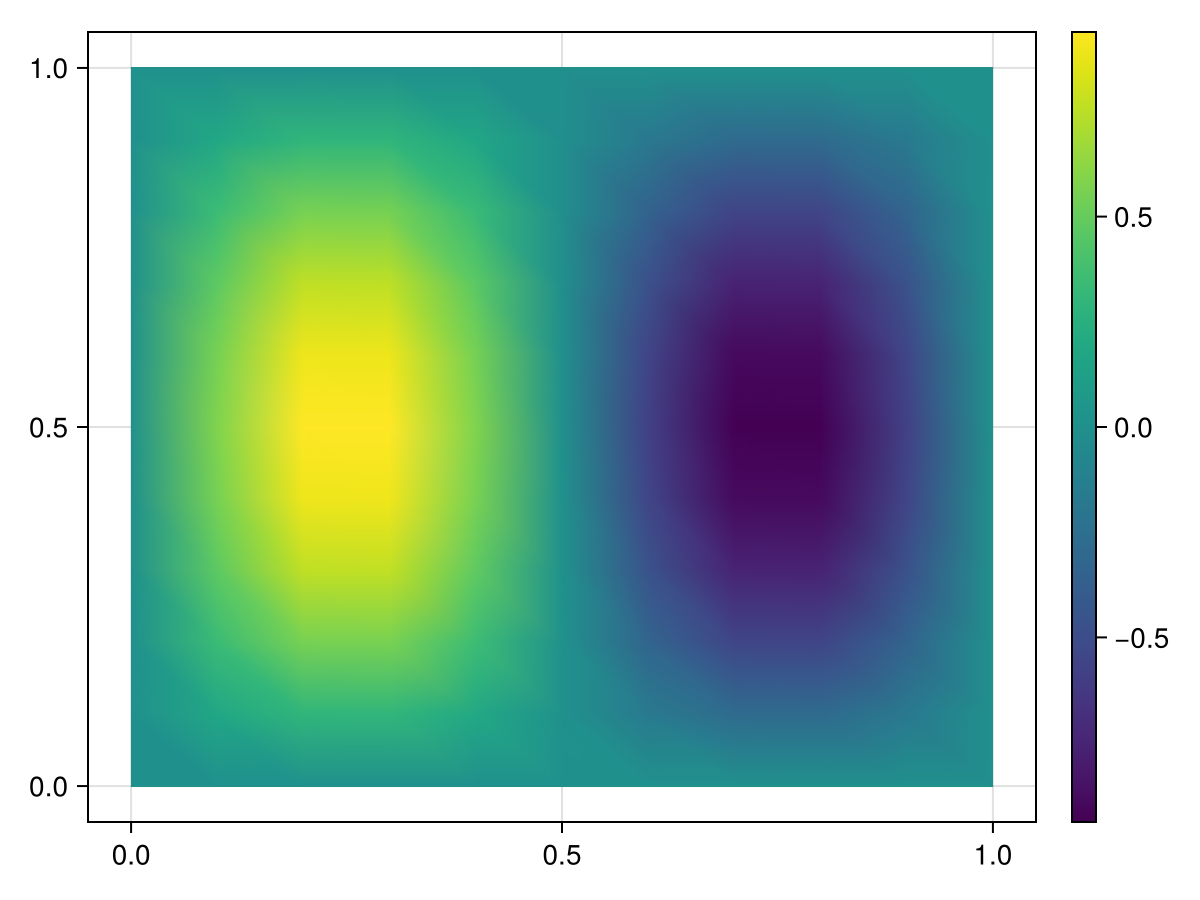

fig_soln, _ , plt = plot(𝓣ₕ, uh, colormap=:viridis)
Colorbar(fig_soln[1,2], plt)
fig_soln
Example block output

We can then build the fluxes $\sigma_{\mathrm{eq},h}$ and $\sigma_{\mathrm{ave},h}$ via the following:

using EquilibratedFlux
σ_eq = build_equilibrated_flux(-∇(uh), f, model, order);
σ_ave = build_averaged_flux(-∇(uh), model);

First we calculate the estimators and the error using the fluxes and the approximate solution $u_h$.

include("helpers.jl")

H1err² = L2_norm_squared(∇(u - uh), dx)
@show sqrt(sum(H1err²))
H1err_arr = sqrt.(getindex(H1err², 𝓣ₕ));

η_eq² = L2_norm_squared(σ_eq + ∇(uh), dx)
@show sqrt(sum(η_eq²))
ηeq_arr = sqrt.(getindex(η_eq², 𝓣ₕ));

η_ave² = L2_norm_squared(σ_ave + ∇(uh), dx)
@show sqrt(sum(η_ave²))
ηave_arr = sqrt.(getindex(η_ave², 𝓣ₕ));
sqrt(sum(H1err²)) = 0.8073549942018825
sqrt(sum(η_eq²)) = 0.841233933128969
sqrt(sum(η_ave²)) = 0.9656710082861283

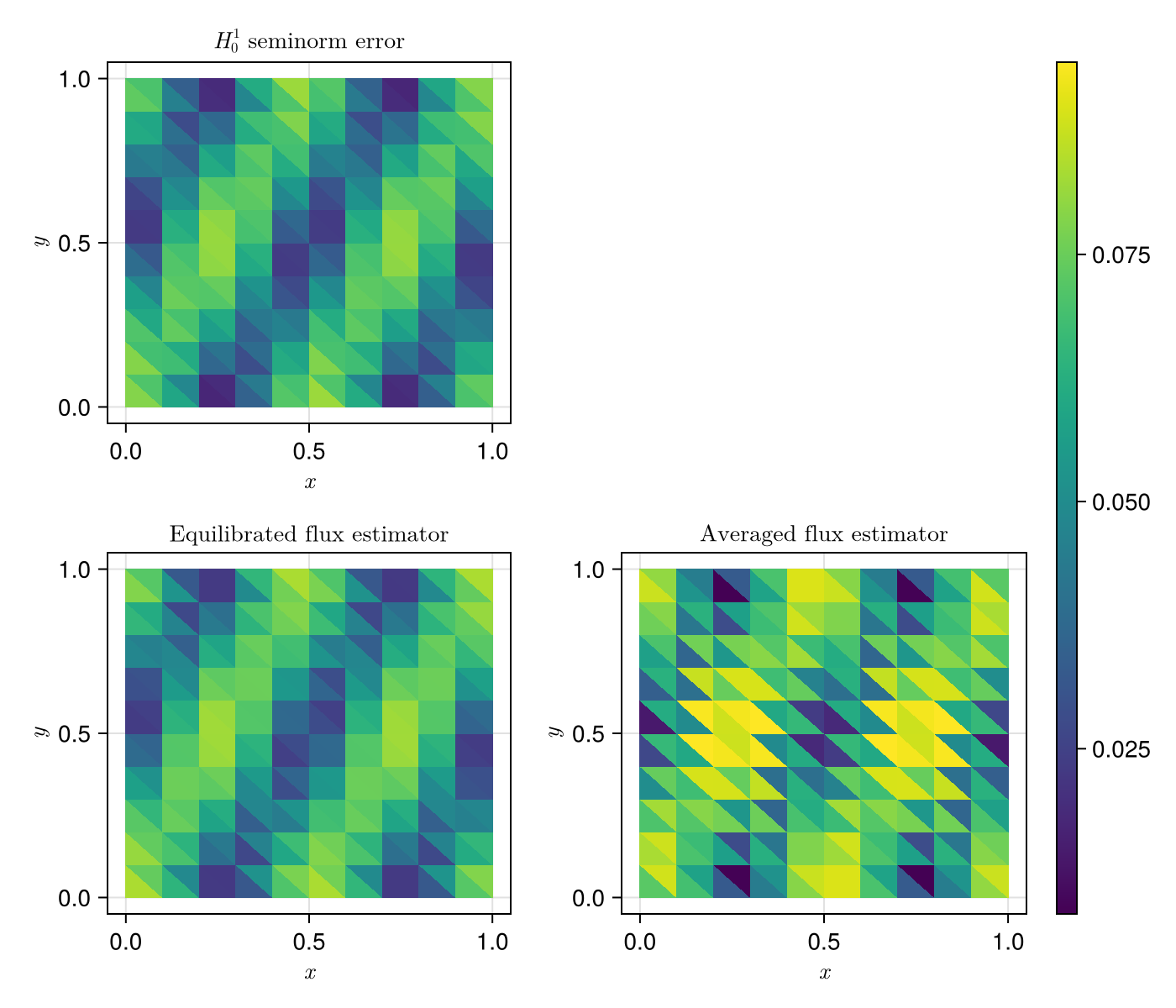

Now we plot the estimators and errors restricted to each element (the full code can be found in helpers.jl)

fig = plot_error_and_estimator(𝓣ₕ, ηave_arr, ηeq_arr, H1err_arr)
Example block output

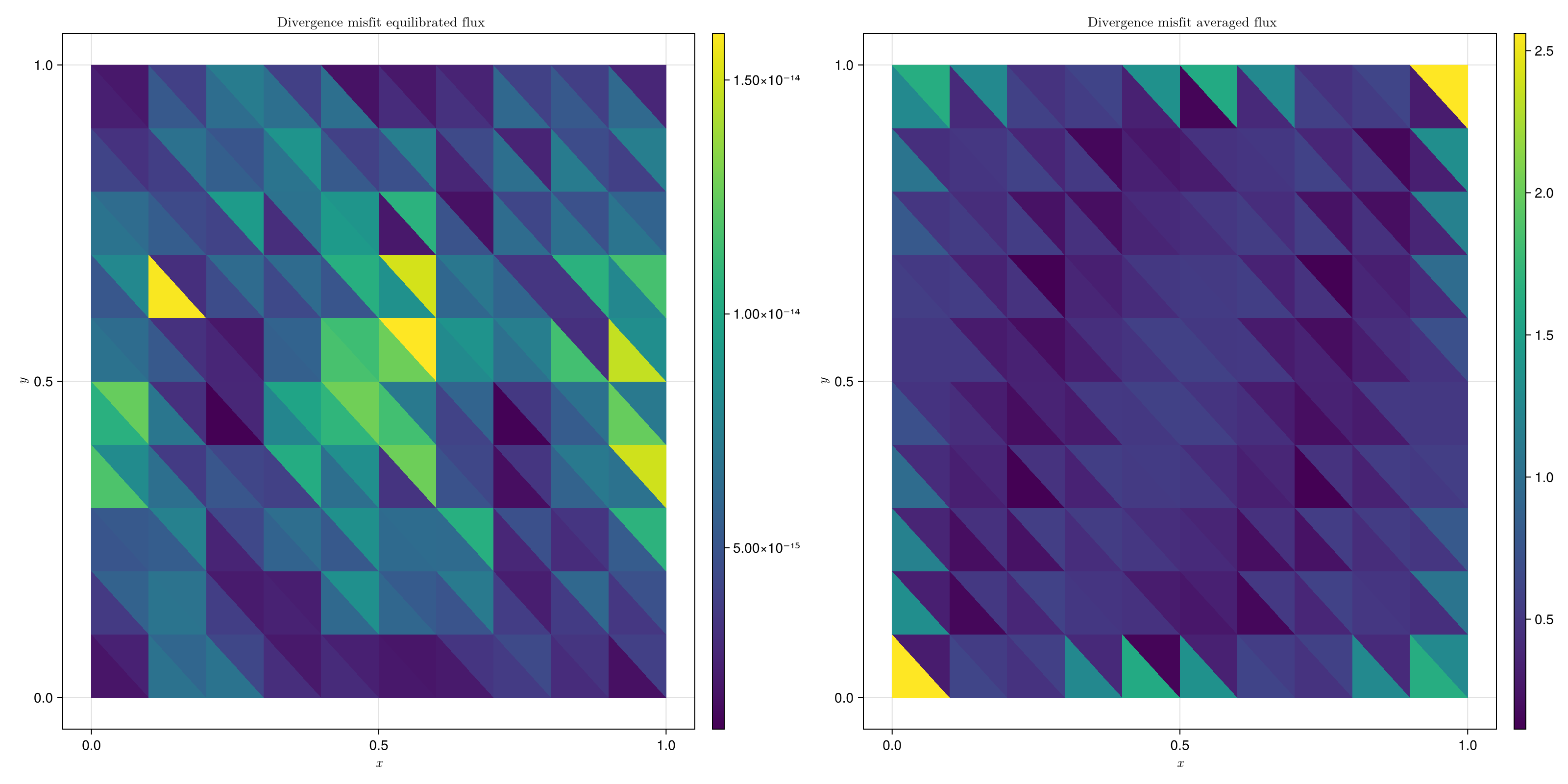

We see that both estimators provide a good cellwise approximation of the error, but the one based on the equilibrated flux is closer visually. Next, we consider the divergence error, i.e., how well the reconstructed object satisfies $\nabla\cdot\sigma = \Pi_1 f$. In particular, in the following plot we can see that the equilibrated flux estimator satisfies the divergence constraint up to machine precision, but the flux based on averaging does not.

f_proj = L²_projection(model, reffe, f, dx)
eq_div  = L2_norm_squared(∇ ⋅ σ_eq - f_proj, dx)
ave_div = L2_norm_squared(∇ ⋅ σ_ave - f_proj, dx)
eq_div_vis = CellField(sqrt.(getindex(eq_div, 𝓣ₕ)), 𝓣ₕ)
ave_div_vis = CellField(sqrt.(getindex(ave_div, 𝓣ₕ)), 𝓣ₕ)
fig = plot_divergence_misfit(𝓣ₕ, eq_div_vis, ave_div_vis)
Example block output
